SKU PS-50S.P0D810-4S

Glass adaptor D50 spherical, SS, satin

€6.64 Tax excluded
€8.03 Tax included
Tax included
D, mm
Grade
Thread Ø
Quantity
Last items in stock
Add to Cart

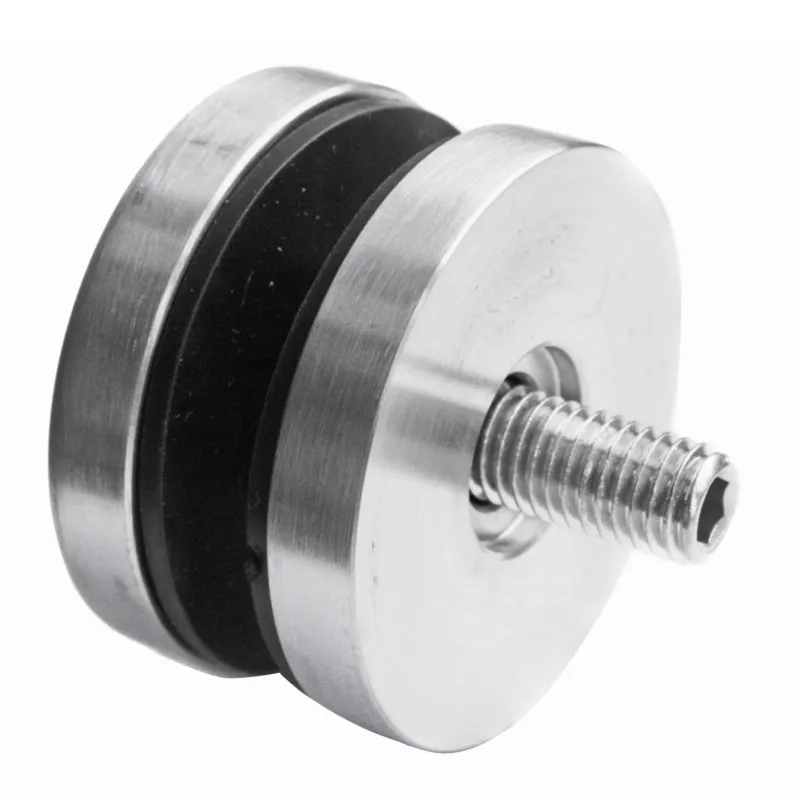

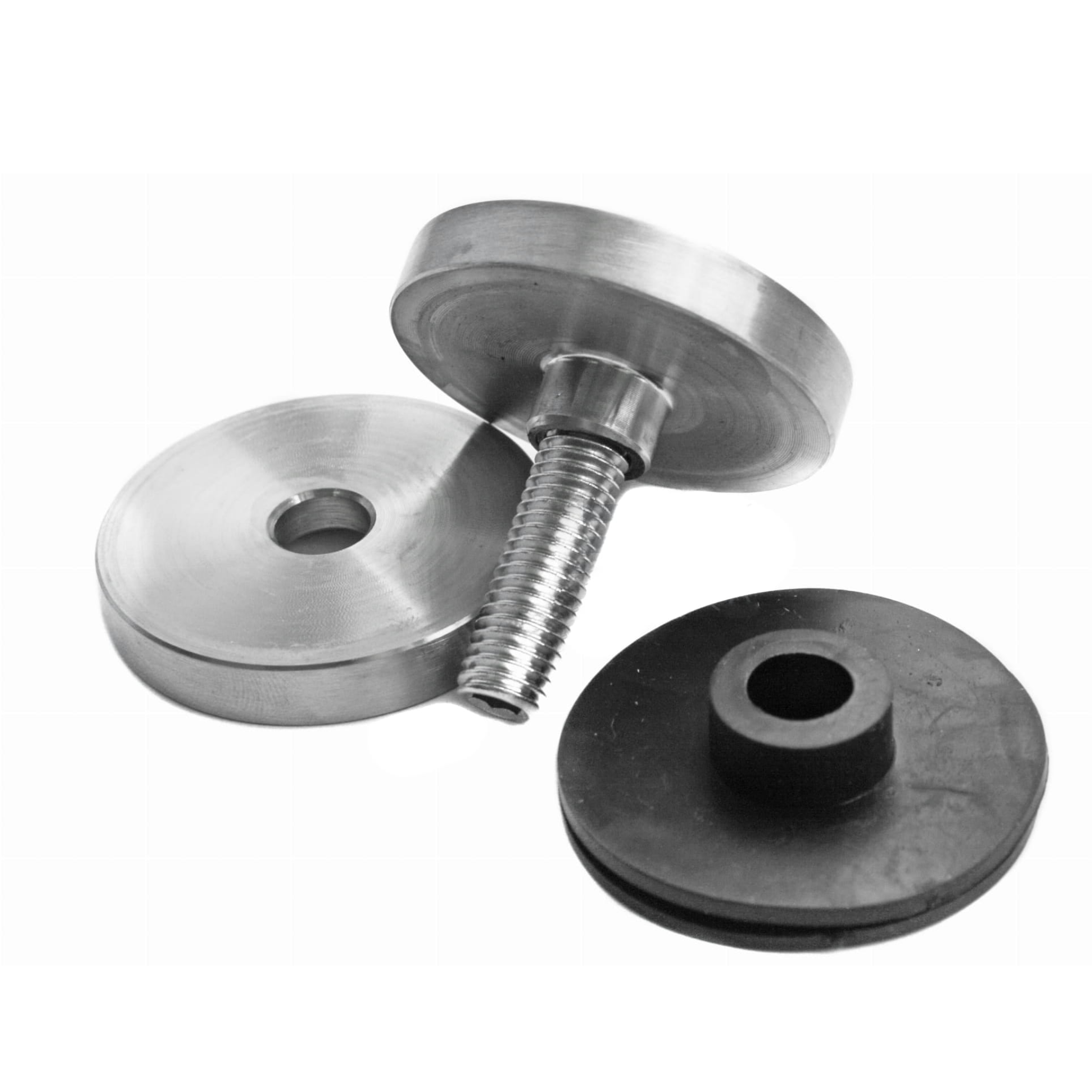

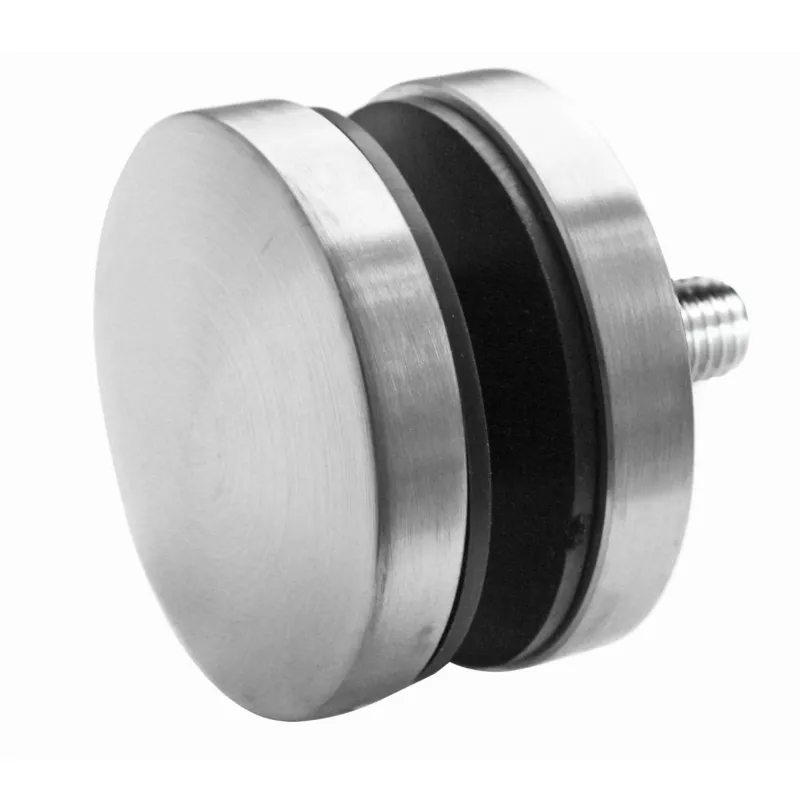

Glass adaptor spherical for flat surface, D50mm, spacer t=10mm, screw M8/M10, stainless steel AISI304/316, surface finish satin.

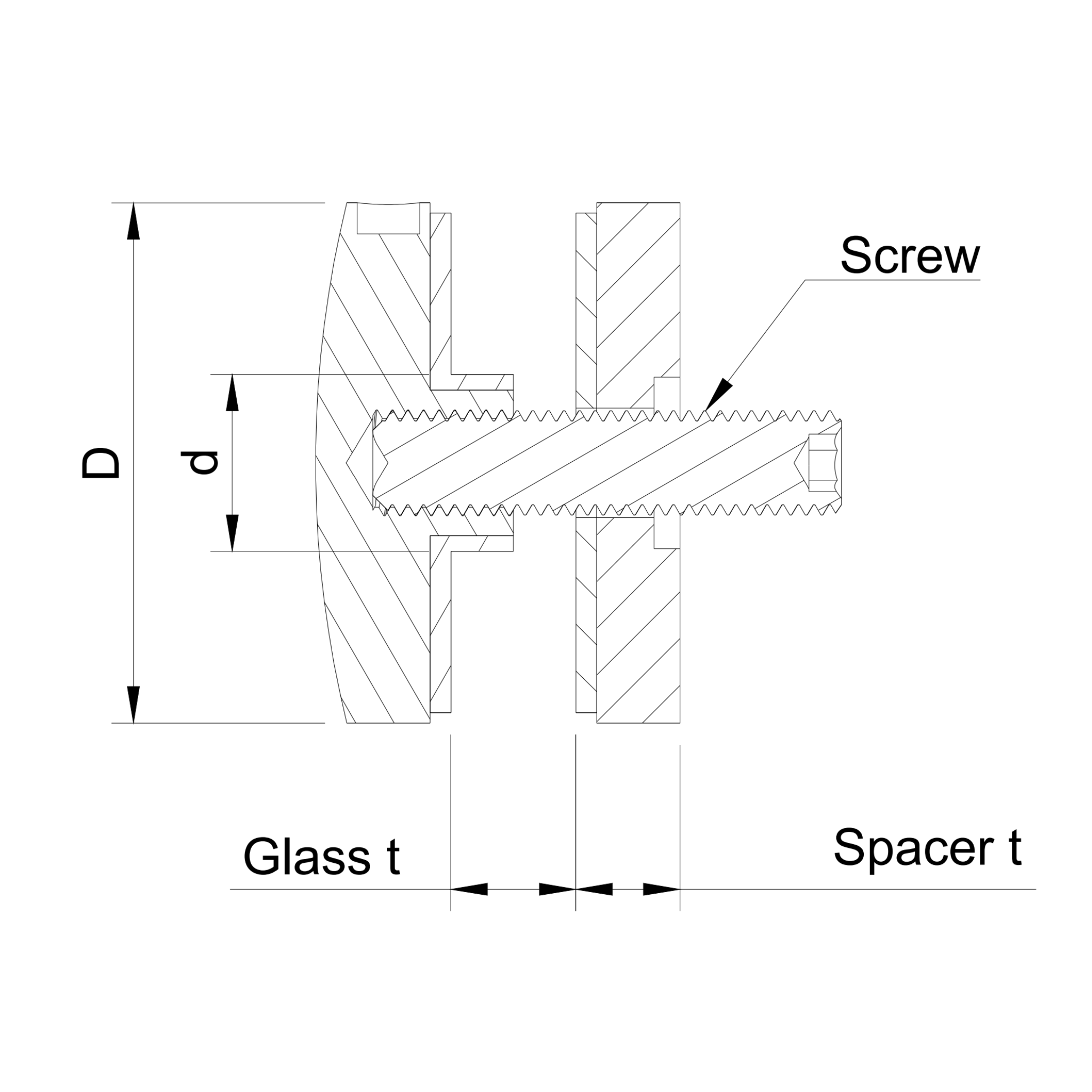

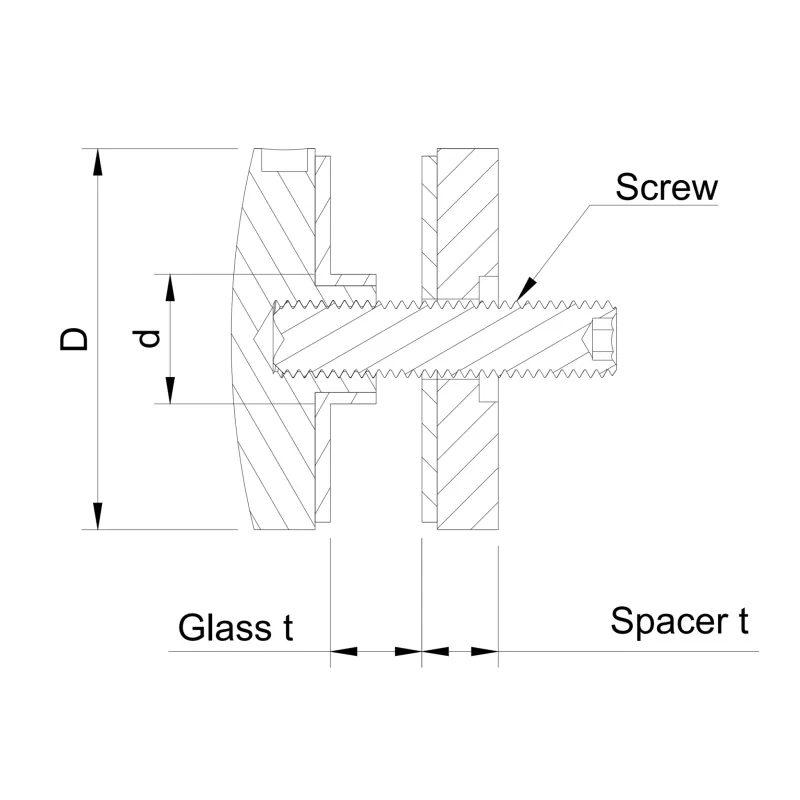

D, mm Spacer t, mm Screw Glass thickness, mm Inner d, mm Grade
50 10 M8x45 8-17.52
 17
 AISI304
50 10 M10x45 8-17.52 17 AISI304
50 10 M8x45 8-17.52 17 AISI316
50 10 M10x45 8-17.52 17 AISI316
