Glass adaptor D50 spherical, SS, satin
Glass adaptor D50, SS, satin - Strofix
Glass adaptor D50, SS, satin - Strofix
SKU PS-50S.L0D1022-4S

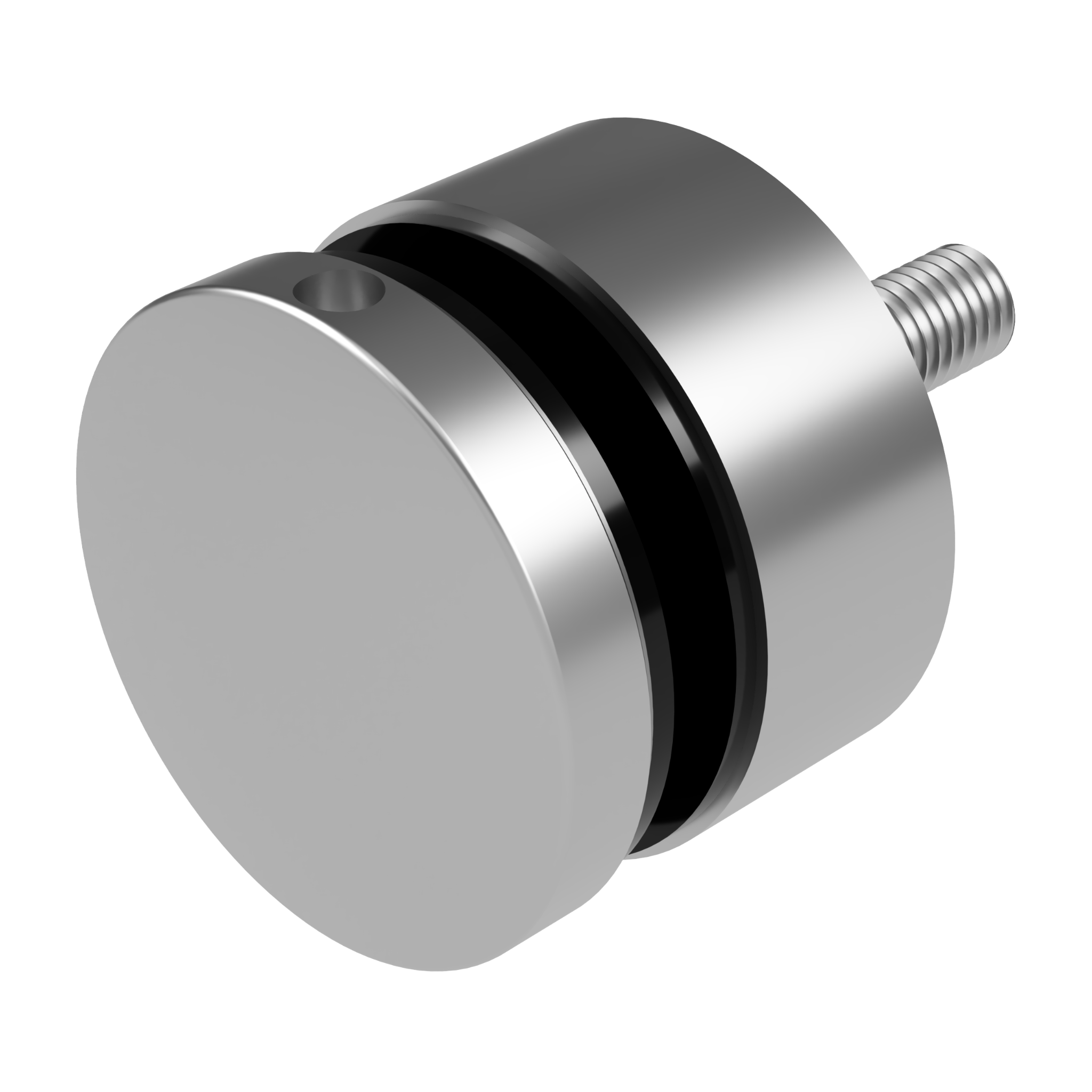

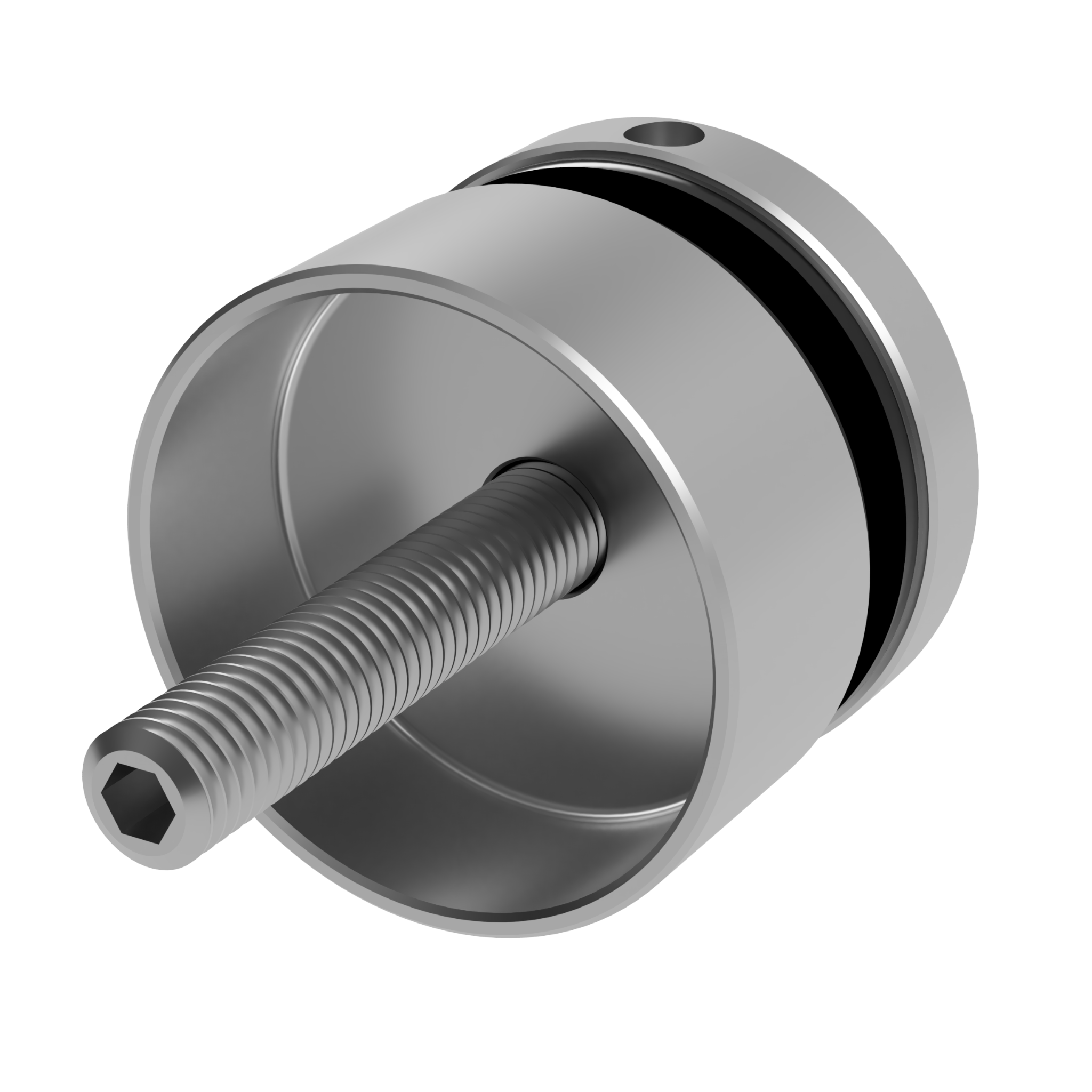

Glass adaptor D50 spherical, SS, satin

€8.60 Tax excluded
€10.41 Tax included
Tax included
D, mm
Grade
Spacer t, mm
Quantity
Add to Cart

Glass adaptor for flat surface, D50mm, spacer t=22-52mm, screw M10, stainless steel AISI304/316, surface finish satin

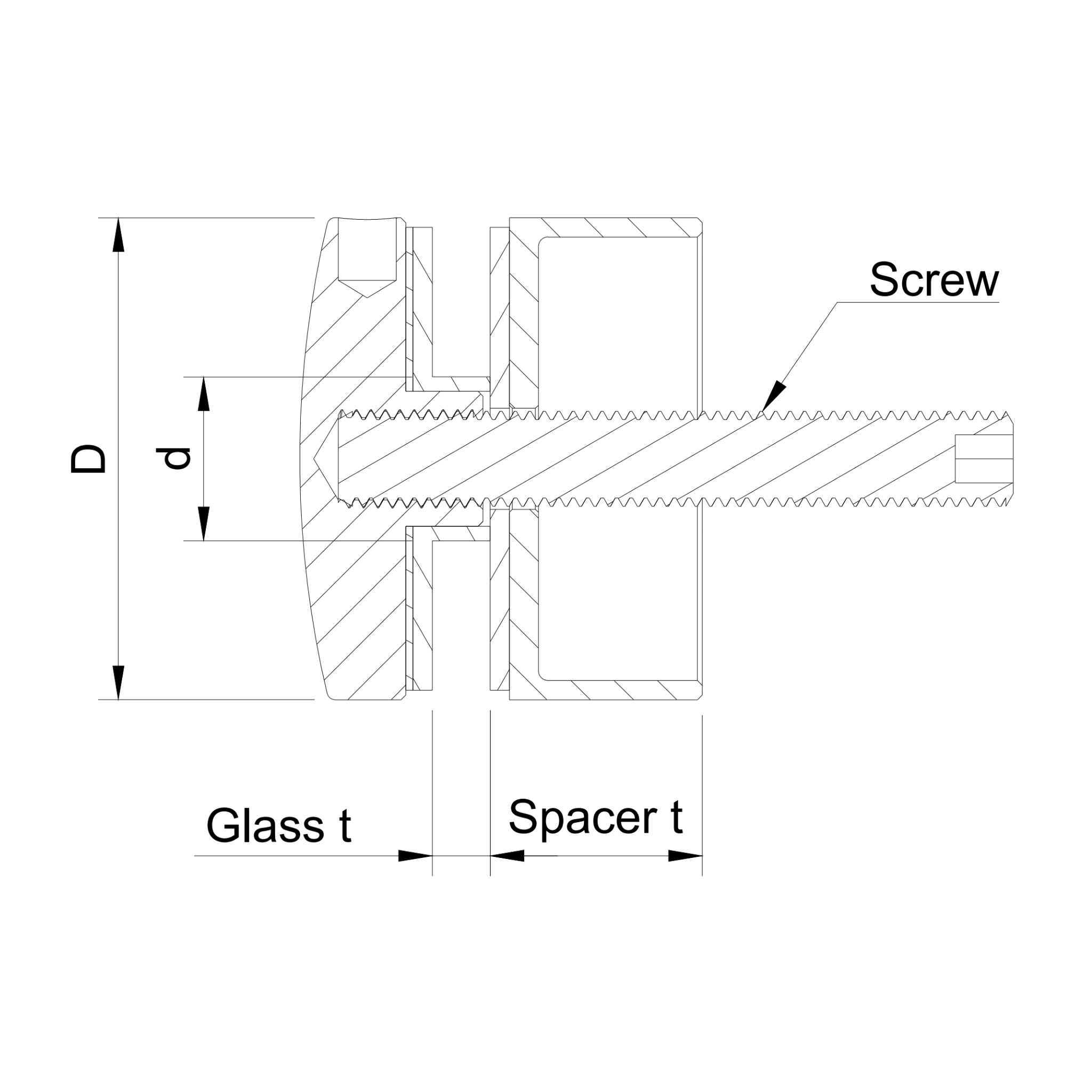

D, mm Spacer t, mm Screw Glass thickness, mm Inner d, mm Grade
50 22 M10x70 8-17.52 17 AISI304
50 32 M10x70 8-17.52 17 AISI304
50 32 M10x70 8-17.52 17 AISI316
50 42 M10x90 8-17.52 17 AISI304
50
 52 M10x90 8-17.52 17 AISI304




Download PDF
