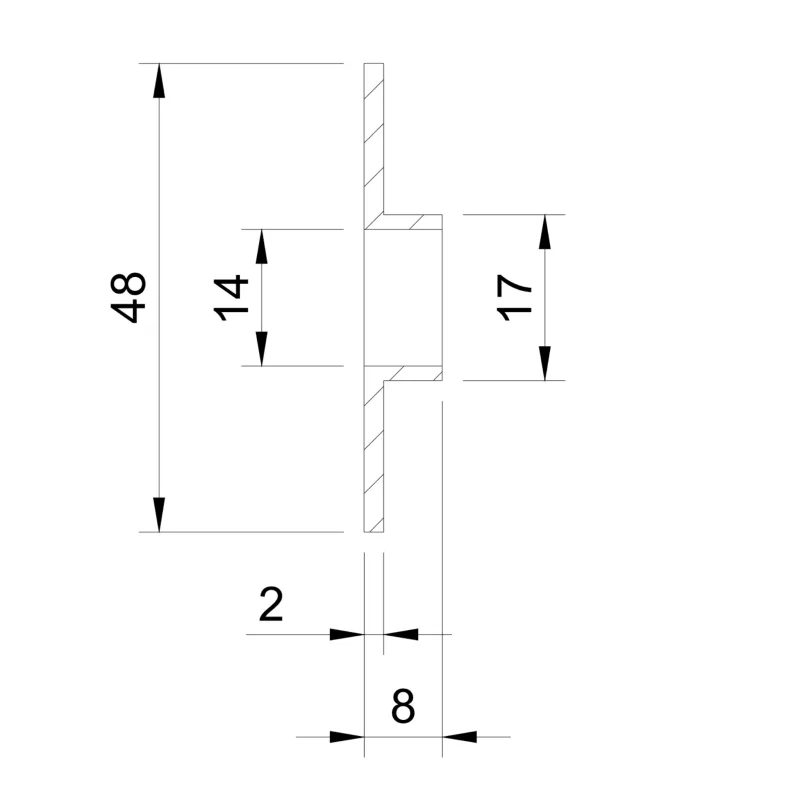

The outer diameter of the gasket - Ø 48 mm

Diameter of the internal hole - Ø 14 mm

Total height with flange - 8mm

Flange diameter Ø 17mm

Material: ethylene-propylene-diene EPDM

Weather resistant

Water resistant

Temperature from -40 ° C to +110 ° C

Hardness in the range of 40-90

Thickness: 2mm

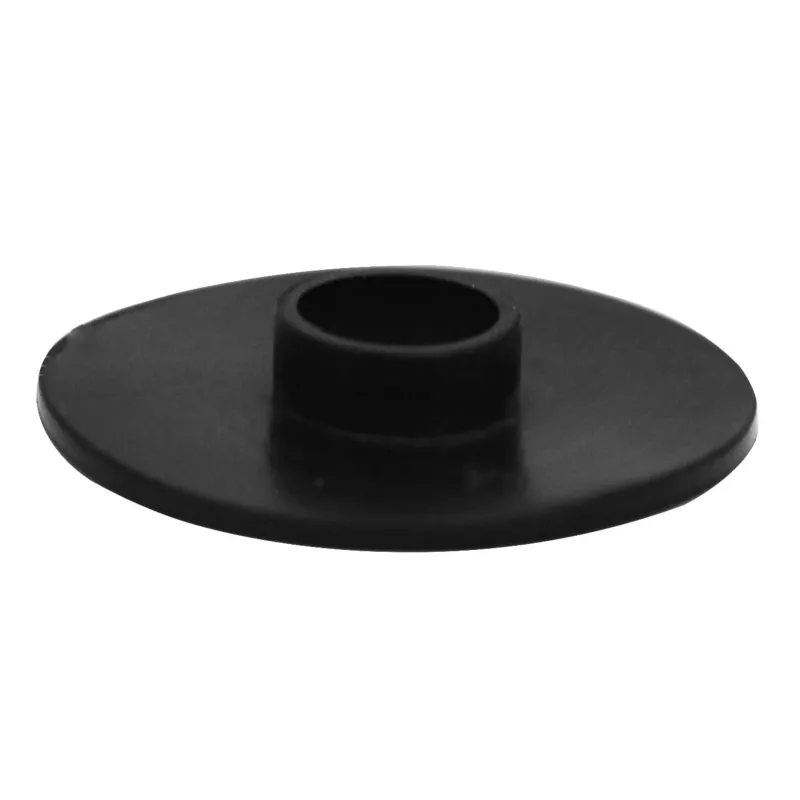

Gasket for the handle - Ø 50mm

D, mm	Spacer t, mm	Inner d, mm
48	2	14
