(C) Glass clamp - 42.4/48.3 (L=45) - StroFIX
(C) Glass clamp - 42.4/48.3 (L=45) - StroFIX
SKU ST4545S-04/242L

(C) Glass clamp - 42.4/48.3 (L=45)

€5.57 Tax excluded
€6.74 Tax included
Tax included
ø
Grade
Finish
Quantity
Last items in stock
Add to Cart

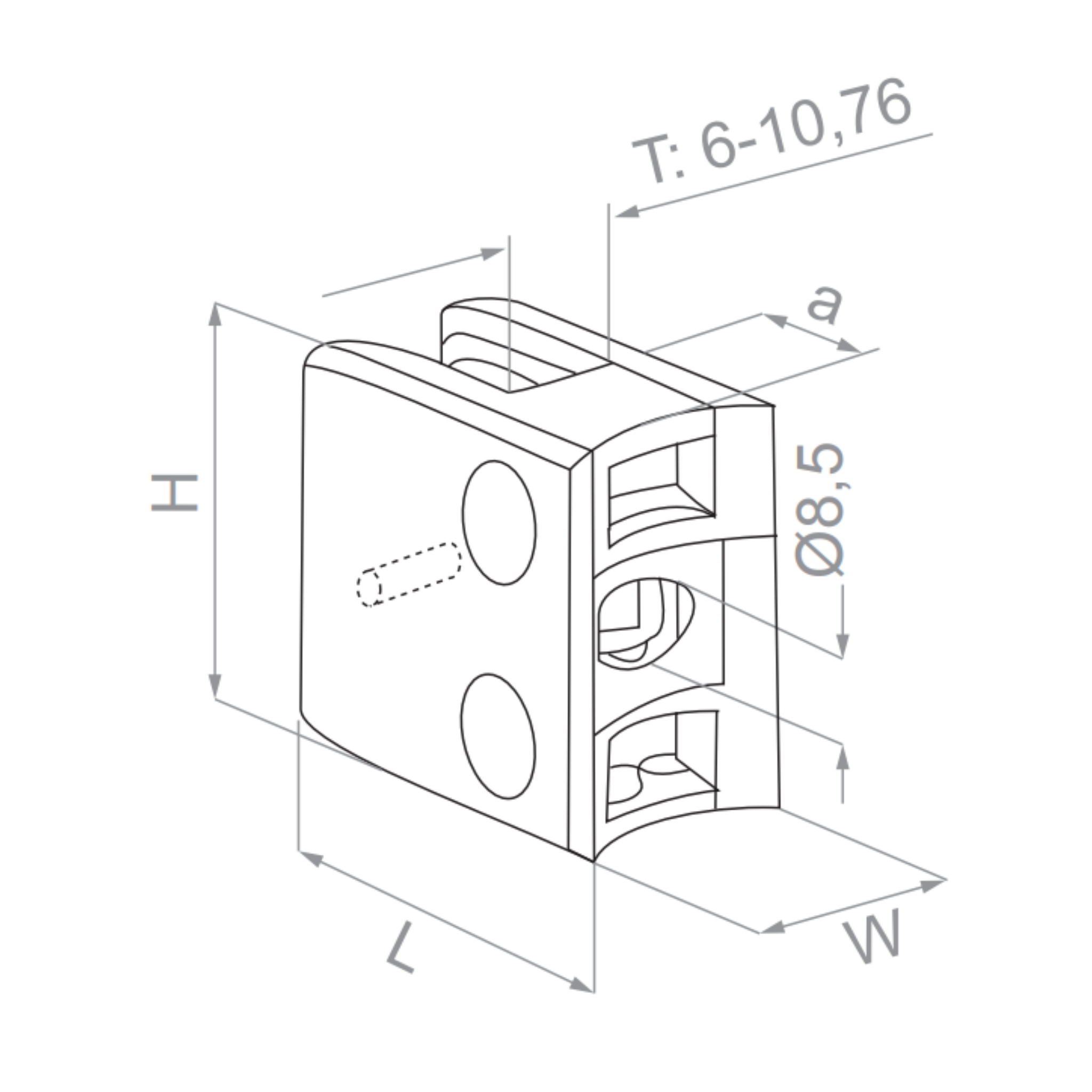

Glass clamp with support for Ø42.4mm & Ø48.3mm. 45x45x26mm. Glass thickness 6-10.76mm. L=45, H=45. AISI304, Satin/Polish. Made of stainless steel.

-Elements for screwing-

ø L, mm H, mm W, mm a, mm Grade Finish
42.4 45 45
 26 18 AISI304 Satin
42.4 45 45 26 18 AISI304 Polish
48.3 45 45 26 18 AISI304 Satin



Download PDF
